2025 Triton Trailers ATV Series Twin Ramps Single Axle Trailers 104 in.

Aluminum / Wood • New Sport Utility Trailers

2025 Triton Trailers ATV Series Twin Ramps Single Axle Trailers 104 in. in Calmar, Iowa - Photo 1
2025 Triton Trailers ATV Series Twin Ramps Single Axle Trailers 104 in. in Calmar, Iowa - Photo 2
2025 Triton Trailers ATV Series Twin Ramps Single Axle Trailers 104 in. in Calmar, Iowa - Photo 3
2025 Triton Trailers ATV Series Twin Ramps Single Axle Trailers 104 in. in Calmar, Iowa - Photo 4
2025 Triton Trailers ATV Series Twin Ramps Single Axle Trailers 104 in. in Calmar, Iowa - Photo 5
2025 Triton Trailers ATV Series Twin Ramps Single Axle Trailers 104 in. in Calmar, Iowa - Photo 6
2025 Triton Trailers ATV Series Twin Ramps Single Axle Trailers 104 in. in Calmar, Iowa - Photo 7
Previous
Next
2025 Triton Trailers ATV Series Twin Ramps Single Axle Trailers 104 in. in Calmar, Iowa - Photo 1
2025 Triton Trailers ATV Series Twin Ramps Single Axle Trailers 104 in. in Calmar, Iowa - Photo 2
2025 Triton Trailers ATV Series Twin Ramps Single Axle Trailers 104 in. in Calmar, Iowa - Photo 3
2025 Triton Trailers ATV Series Twin Ramps Single Axle Trailers 104 in. in Calmar, Iowa - Photo 4
2025 Triton Trailers ATV Series Twin Ramps Single Axle Trailers 104 in. in Calmar, Iowa - Photo 5
2025 Triton Trailers ATV Series Twin Ramps Single Axle Trailers 104 in. in Calmar, Iowa - Photo 6
2025 Triton Trailers ATV Series Twin Ramps Single Axle Trailers 104 in. in Calmar, Iowa - Photo 7
Previous
Next

Request More Information

By pressing SUBMIT, you agree that DX1, LLC and Drilling's All Season Sports may call/text you at the number provided, for either informational or marketing purposes, using an automatic telephone dialing system or pre-recorded/artificial voices. Msg/data rates may apply. You don’t need to consent as a condition of any purchase & you may revoke your consent at any time. You also agree to our Privacy Statement & Terms of Use.
Designed specifically for off-road vehicles, the ATV Series makes hauling ATVs and UTVs easy! These trailers combine side- and rear-loading options, full-length adjustable tie-down positions, and marine grade plywood decks. Choose ATV-TR for easy-to-maneuver twin ramps.
Request More Information Print Brochure
Apply for Financing
Calculate Payment
Compare Models Insurance Quote

2025 Triton Trailers ATV Series Twin Ramps Single Axle Trailers 104 in.

Condition
New
Category
Sport Utility Trailers
Model Type
ATV Series
Model Code
ATV88-TR
Color
Aluminum / Wood

Features

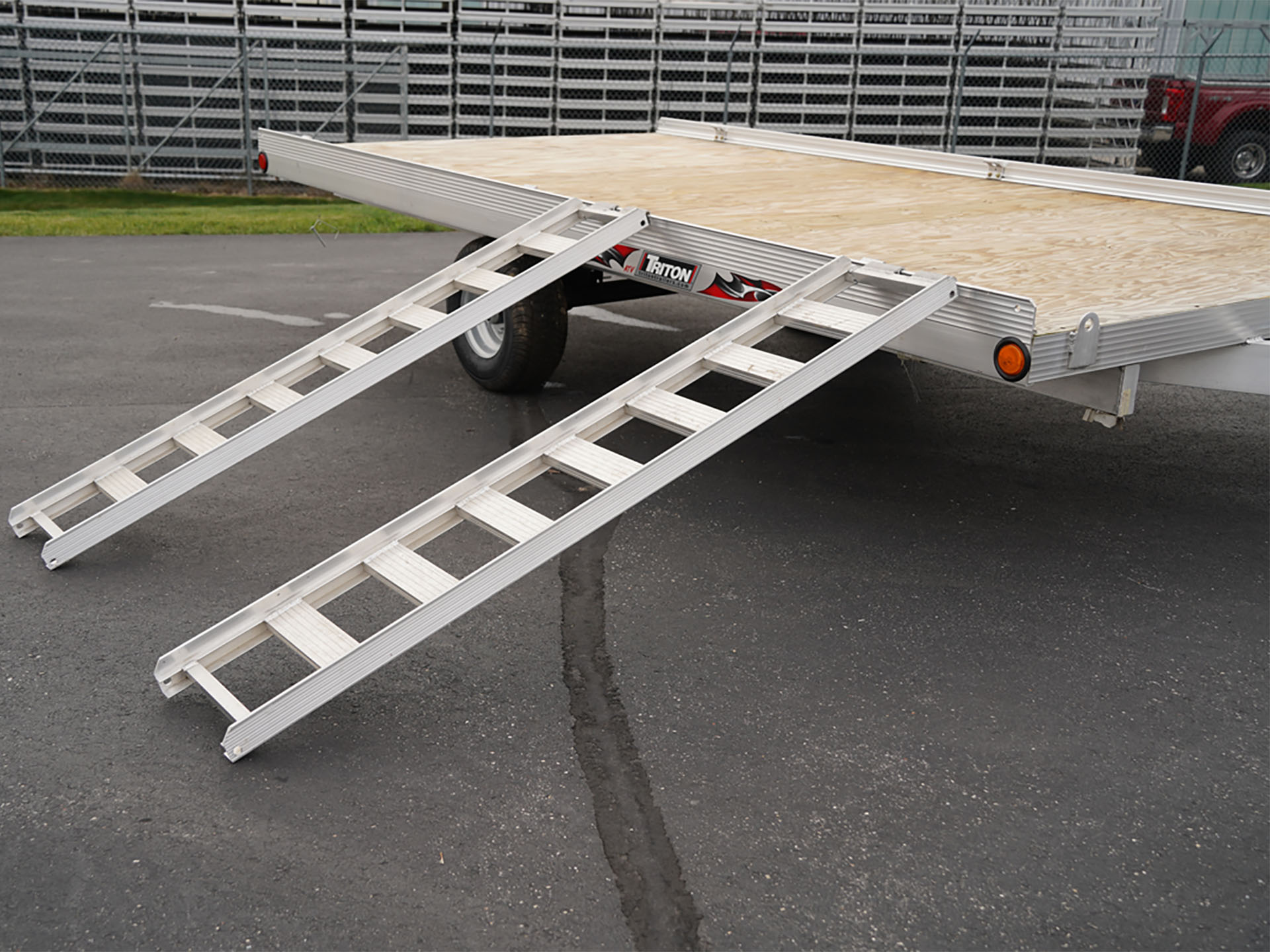

  • SIDE / REAR LOADING OPTIONS: Twin ramps (ATV-TR models) are fully welded, providing superior support when loading and unloading vehicles. Designed for side or rear use. Ramps are easily stored in an under-deck storage system.

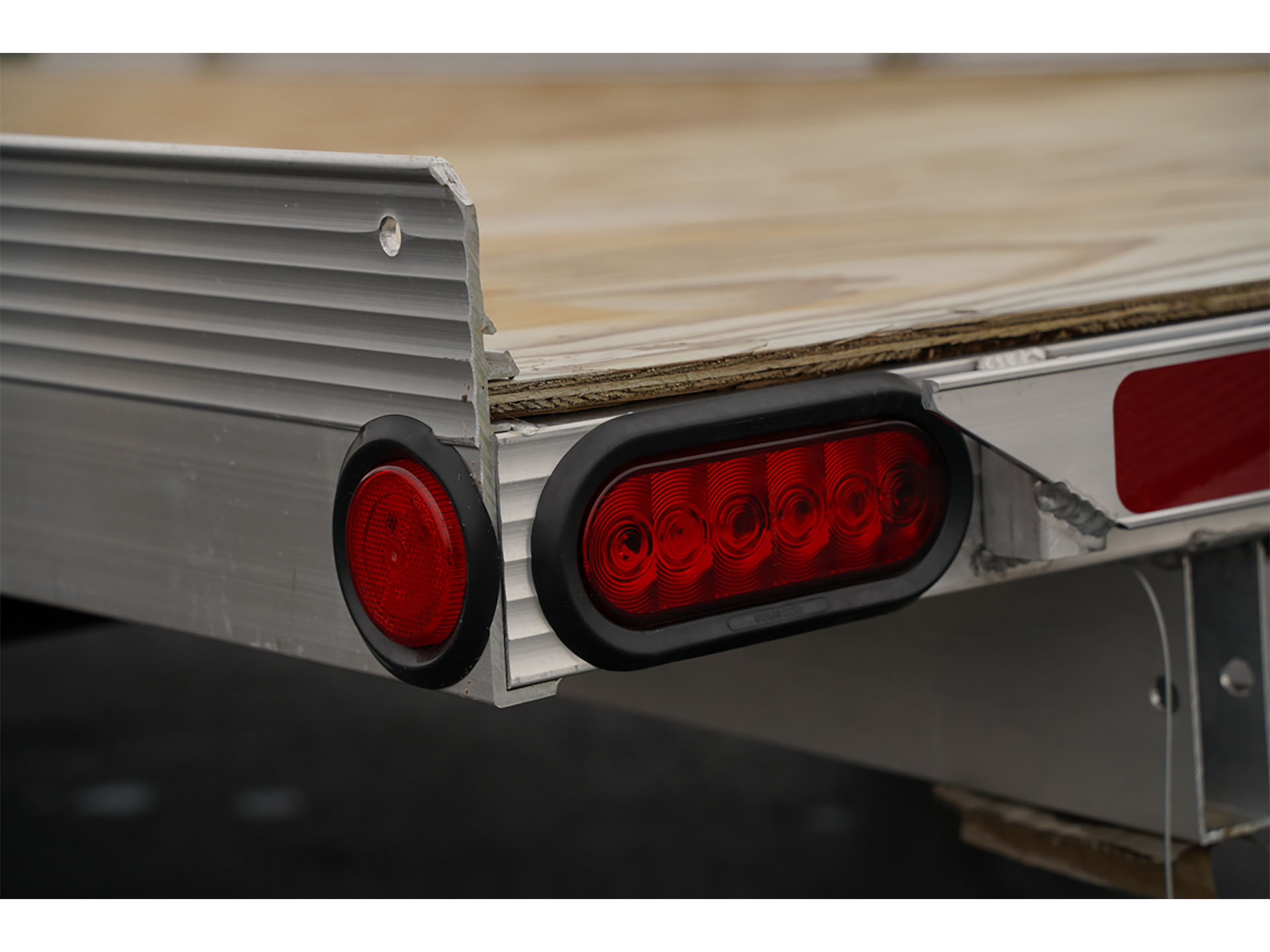

  • LED LIGHTS & WIRING: Your trailer's LED lights are sealed, and the trailer's wiring is both sealed and encased in aluminum tubing, providing moisture and corrosion resistance.

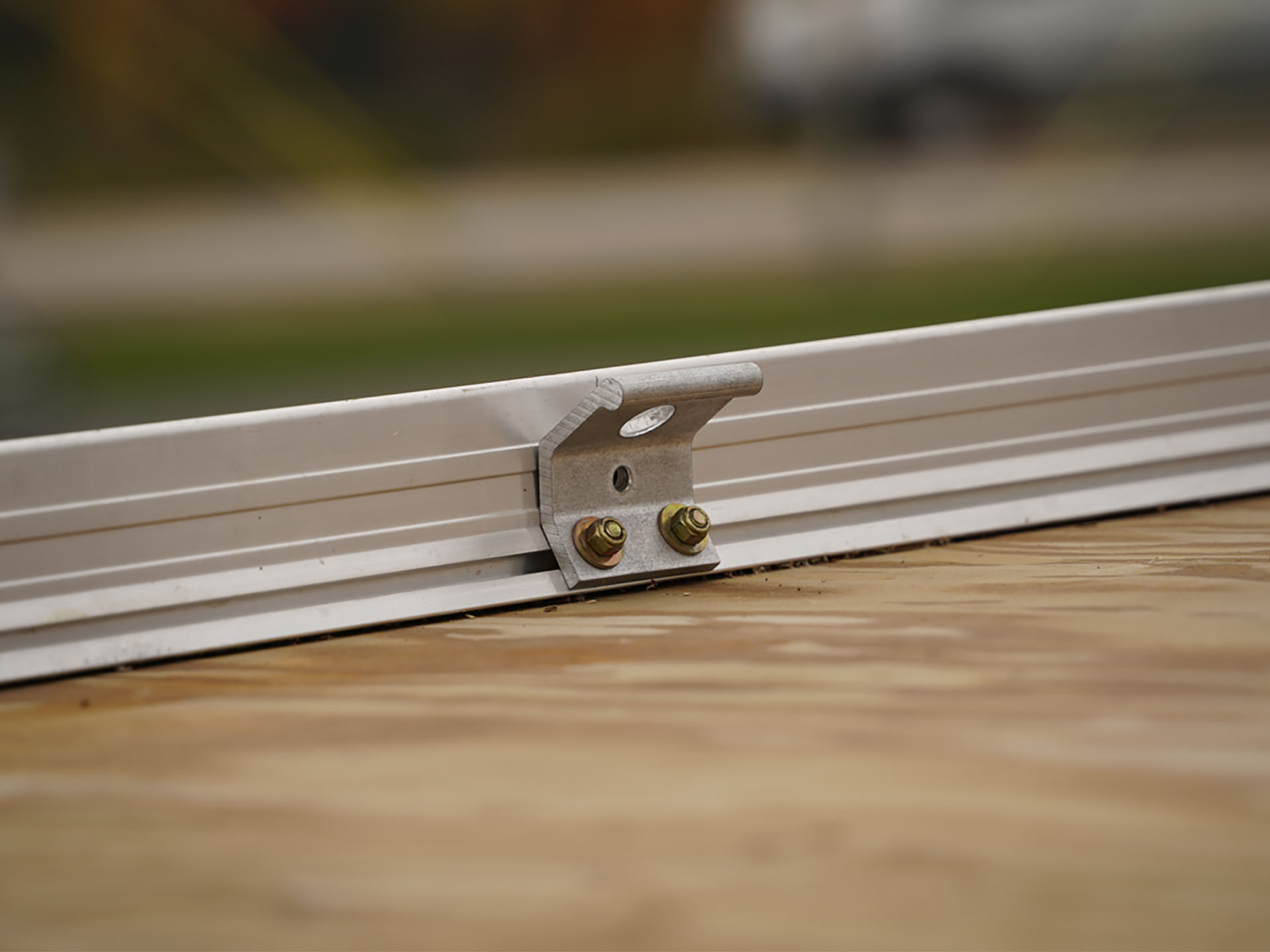

  • TIE DOWN OPTIONS: Integrated channels in the trailer's side rails provide tie down points. Four (4) tie-downs can be easily moved and positioned in the channels to secure cargo.
  • FULLY WELDED FRAME: The Triton difference? An all-aluminum, fully welded box frame provides a solid structure for years of loading and unloading. The trailer frame is fixture-built with custom extrusions, providing long-lasting durability with Triton fit and finish.

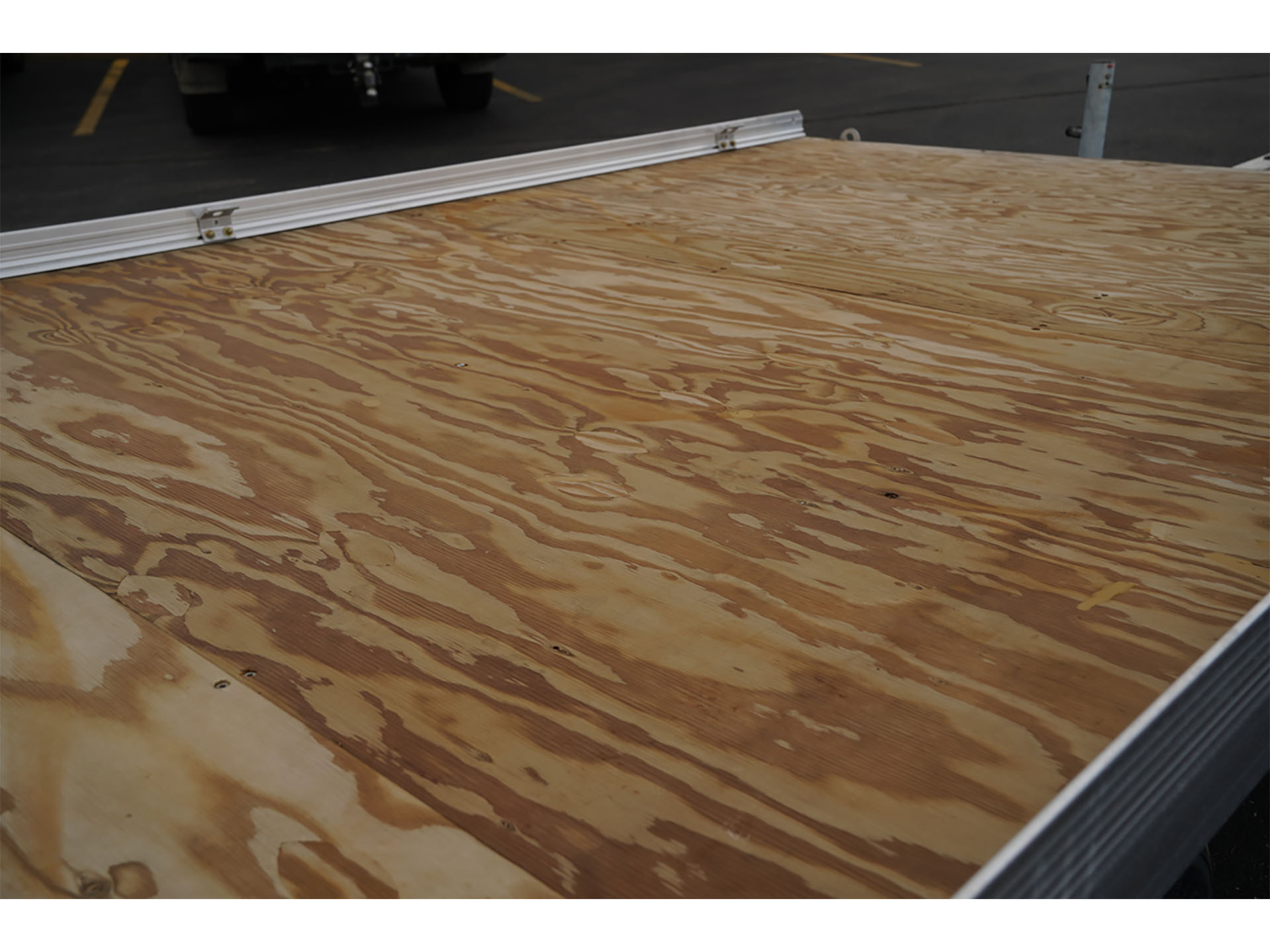

  • DURABLE DECK: Fully treated 1/2” (ATV-TR) marine grade plywood deck stands up to the elements for years of outdoor use.

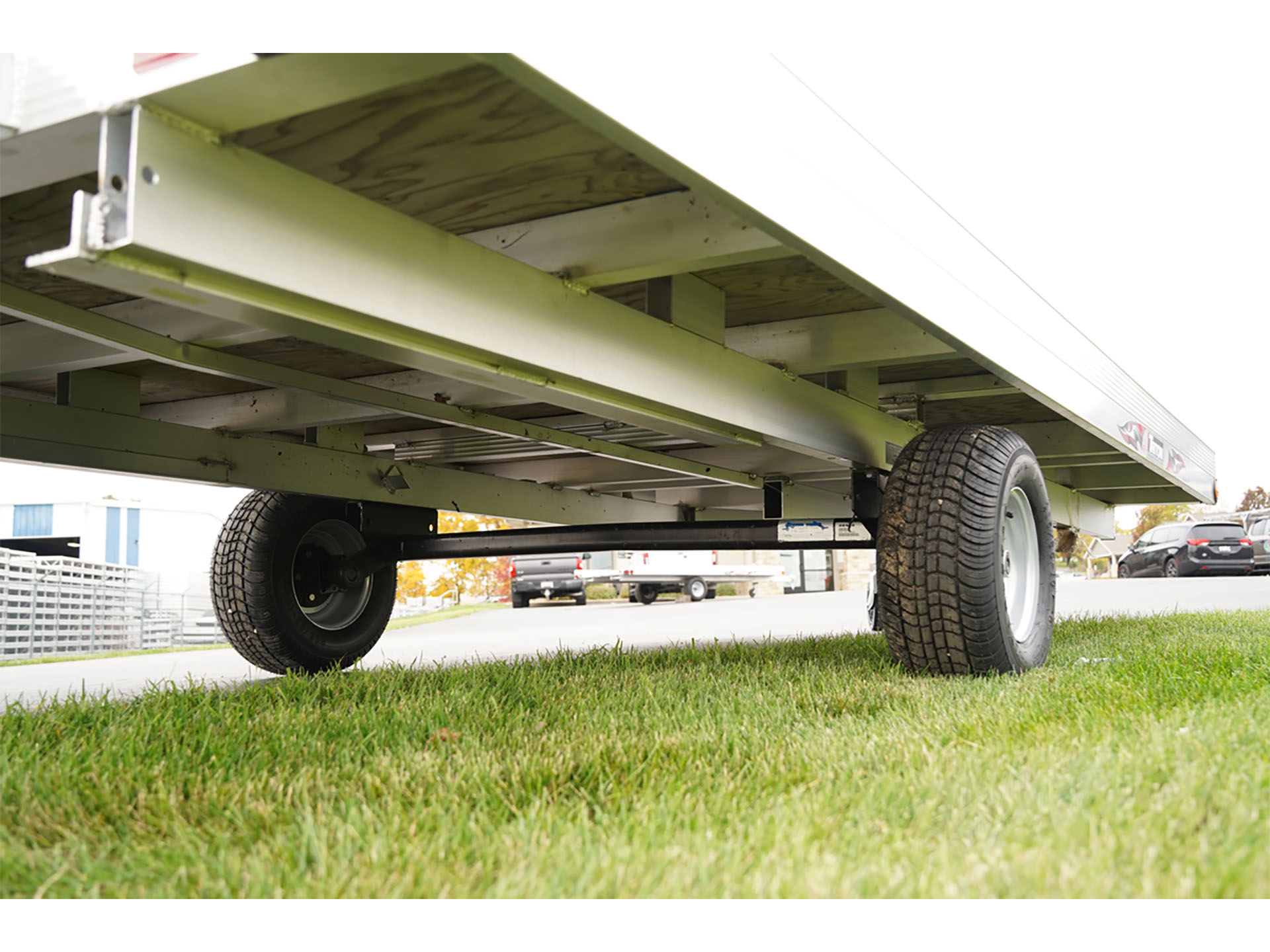

  • TORSION AXLES: Triton's independent suspension with four-cord rubber torsion axle provides a smooth ride for whatever you're hauling.

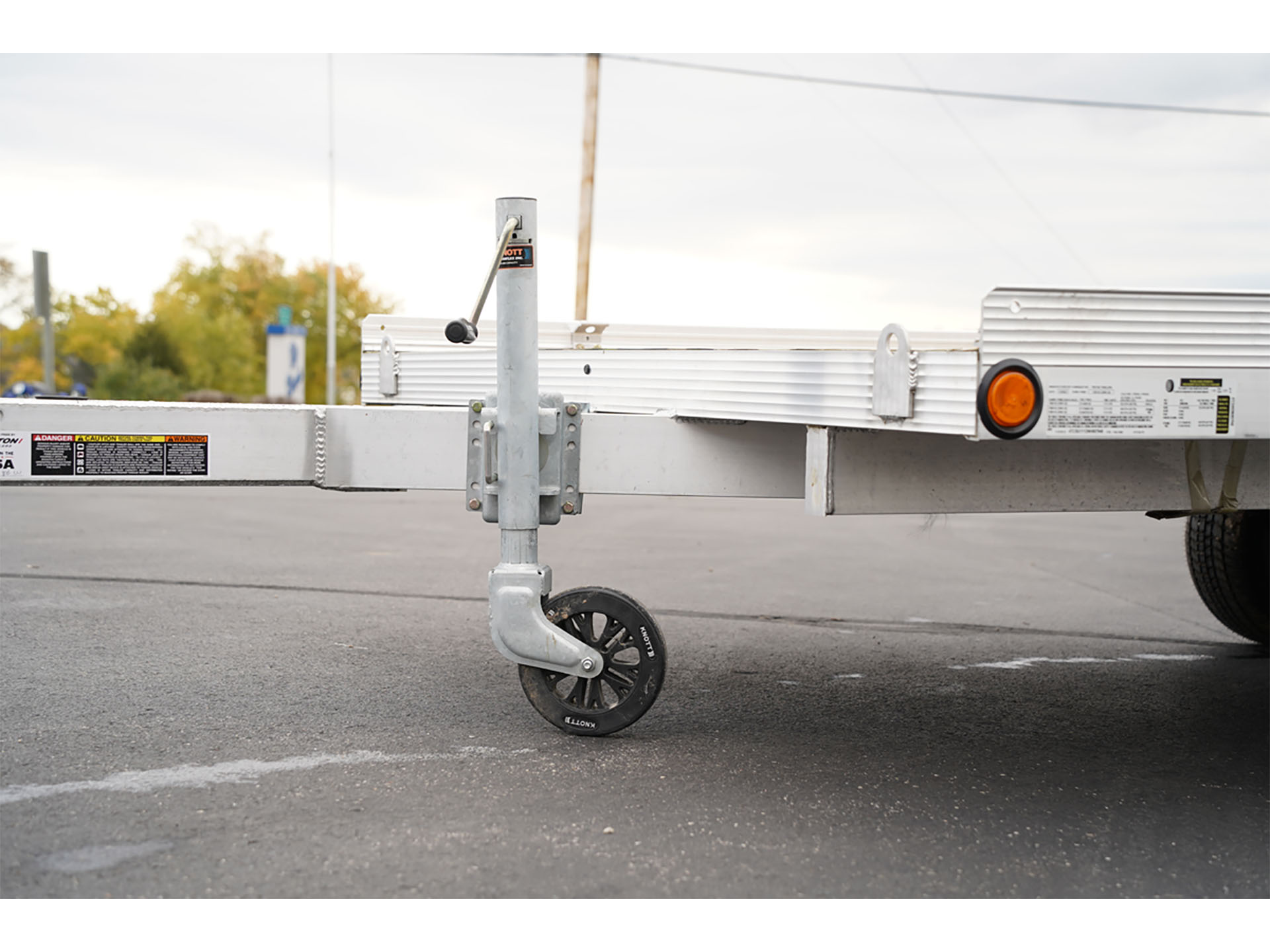

  • TONGUE JACK: 1000# (ATV-TR) swivel wheel tongue jacks with 10” up/down travel help easily move the trailer into position.
  • Loading Style - Side / Rear
  • Tie-Downs - 4

General Information

Manufacturer
Triton Trailers
Model Year
2025
Model
ATV Series Twin Ramps Single Axle Trailers 104 in.
Model Code
ATV88-TR
Color
Aluminum / Wood

Body

Ramp
Twin
Frame

Fully Welded

Aluminum

Floor
Plywood deck

Dimensions

Overall Length
150 in.
Height
Deck - 22 in.
Overall Width
79.75 in.
Weight
Trailer - 410 lb.
Carrying Capacity
Without brakes - 1,470 lb.
Gross Vehicle Weight Rating (GVWR)
Without brakes - 1,880 lb.
Bed Length
104 in.
Bed Width
79 in.

Operational

Axle(s)
Torsion
Hitch
Height - 19 in.
Coupler
2 in.
Jack
1,000# Swivel wheel tongue with 10 in. up / down travel
Vehicle Capacity
2
Number of Rear Axles
1
Tires
18.5 X 8C Steel

Other

Safety Features
Sealed LED lights and wiring
